Project 8-2 The Operational Amplifier

This is the support page for the Operational Amplifier project in Complete Electronics Self-Teaching Guide with Projects.

Parts List:

  • One 0.1 µF capacitor.
  • Resistors.
    • Two 10 kΩ, 0.25-watt resistors.
    • One 51 kΩ, 0.25-watt resistor.
    • One 100 kΩ, 0.25-watt resistor.
    • One 150 kΩ, 0.25-watt resistor.
    • One 220 kΩ, 0.25-watt resistor.
    • One 270 kΩ, 0.25-watt resistor.
    • One 330 kΩ, 0.25-watt resistor.
    • One 380 kΩ, 0.25-watt resistor.
  • Two 6-volt battery packs (4 AA batteries each).
  • One function generator.
  • One oscilloscope.
  • One OPA134 operational amplifier. This op-amp comes in a few different packages; get the 8-pin dual in-line (DIP) version.
  • One breadboard.
  • Two terminal blocks.

Datasheets:

Color Photos:

Operational Amplifier Breadboard Circuit

Project 8.2 Breadboard operational amplifier circuit

Operational amplifier circuit testing

Project 8-2 Function Generator and Oscilloscope Attached to Operational Amplifier Circuit

Oscilloscope trace

Project 8.2 Input signal sine wave (upper) and output signal sine wave (lower)

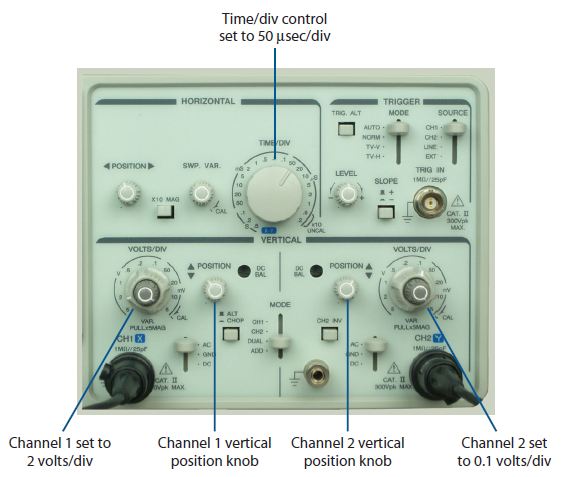

Project 8.2 Adjusted oscilloscope controls testing operational amplifier circuit
